1 Tube Regen Radio

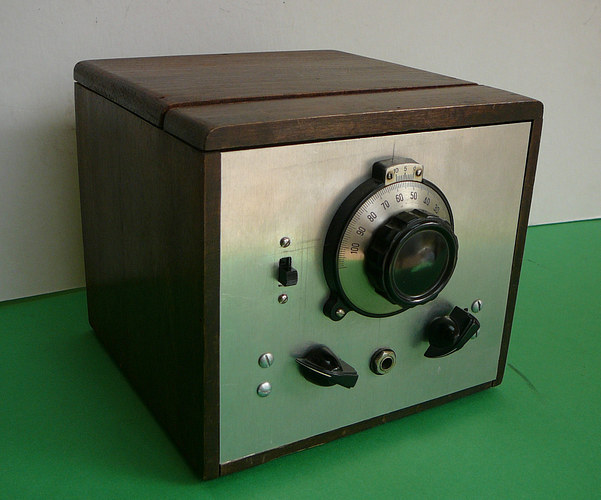

A Modern Radio Labs 1 tube regen radio clone.

1 Tube Regen Radio

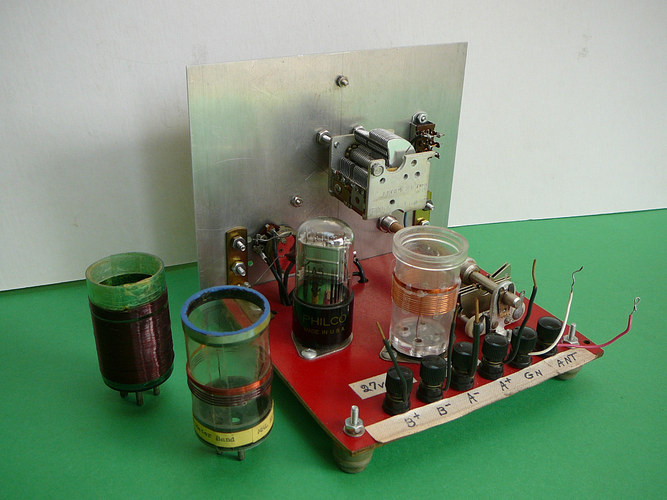

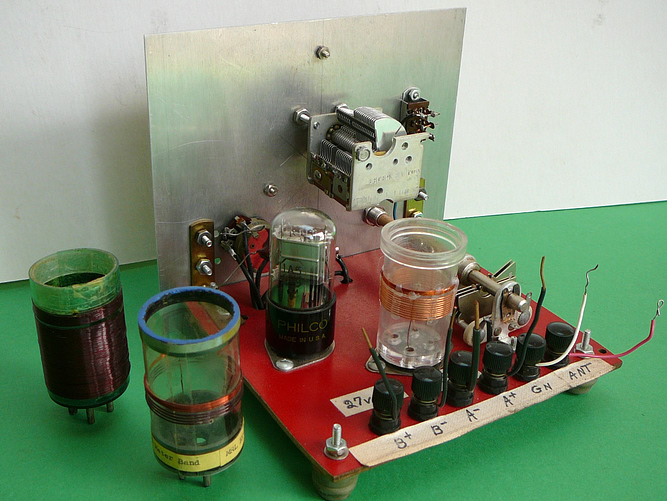

How do we know it's an MRL clone and not just a homebrew regen radio? By the MRL coil and the layout. The switch on the front selects one of the two halves of the tuning capacitor. This is a bit different from Elmer Osterhoudt's setup where the switch added the two together.

1 Tube Regen Radio

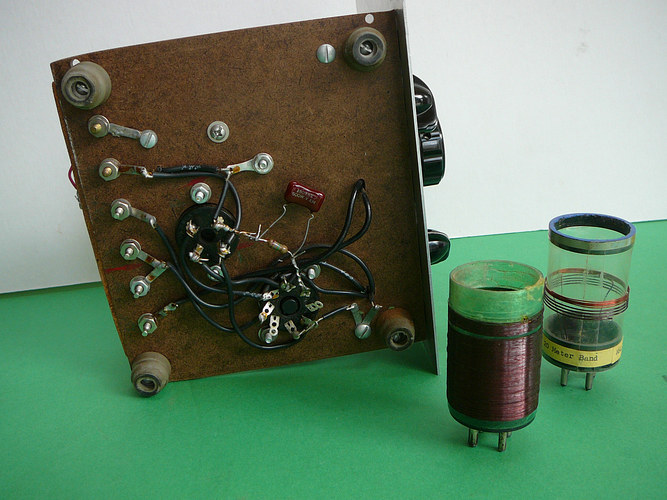

Bottom view. Solder lugs on the left go to the binding posts.

1 Tube Regen Radio
Looking inside the cabinet.


1 Tube Regen Radio

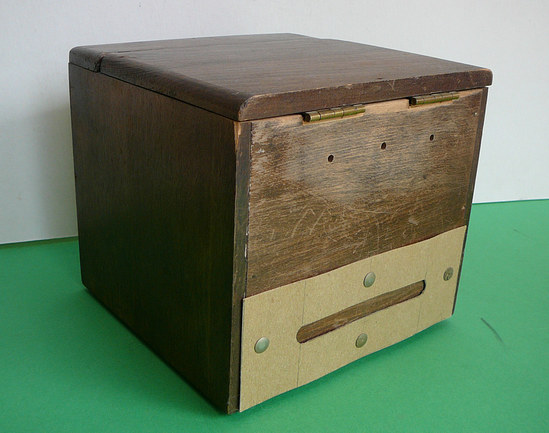

The cabinet from the back.

1 Tube Regen Radio

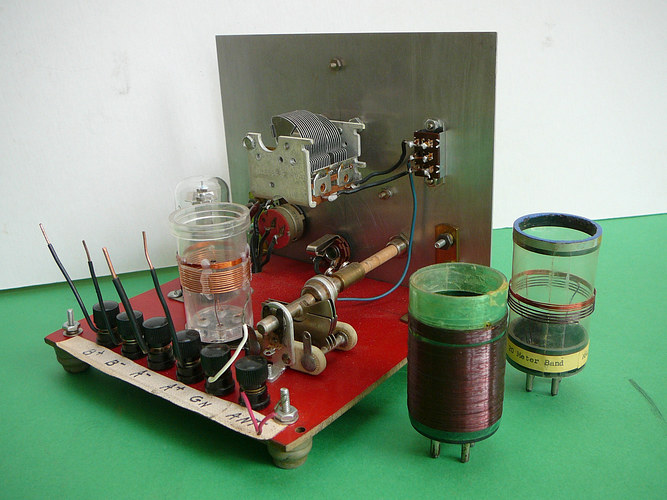

Another view.
On March 24, 2013 this set sold for $133.51 plus $18.50 shipping on ebay. There were 15 bids.
These pictures were taken from the ebay site
