HA-70C
It would be too bad if the HA-70c walkie talkies never worked again, so let's fix them.


Broken resistor
The idea was to replace the four electrolytic capacitors, then go after the transistors, which is exactly what was done.
But first I eyeballed the circuit boards, and I found something weird on the first one I opened.

Broken resistor
Broken resistor
Broken resistor
WHAT THE DICKENS?! What happened to this resistor? It figures, this is the unit with no warranty card, or I would return it to Lafayette!


printed circuit board
The other side of the circuit board has an amazing amount of solder on it.
It looks like it was all done by hand, and very quickly. These are some of the worst solder connections I've ever seen.

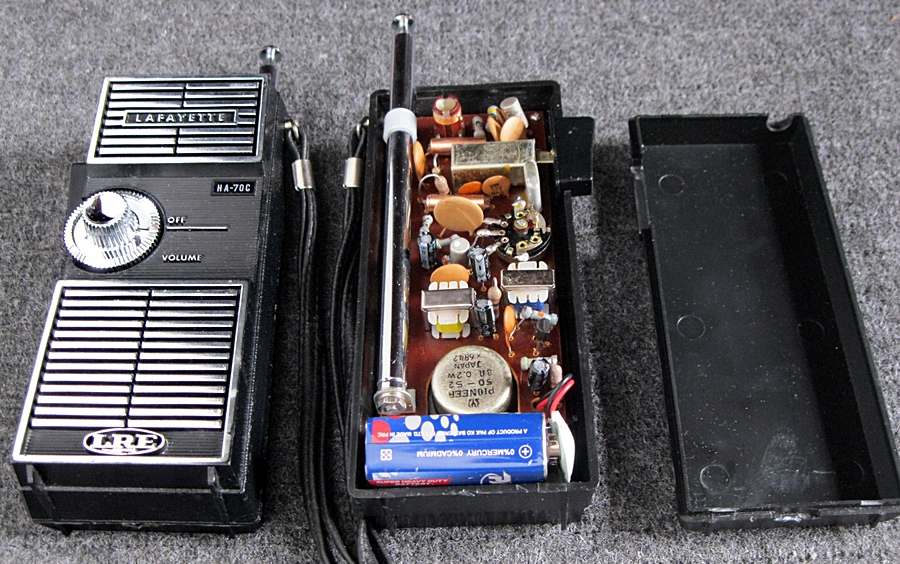

walkie-talkie repair
The broken resistor, four capacitors and a transistor were replaced. This unit now works as well as it ever did.

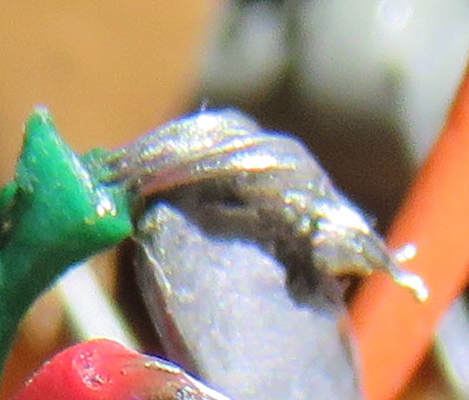

wire on volume control

wire on volume control

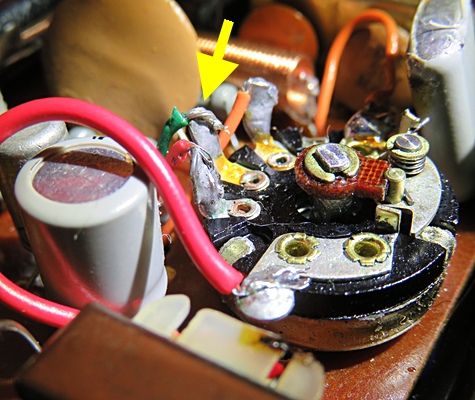

In the second unit there was a wire that wasn't soldered to the volume control. It was just sitting on it.
The catalog stated, "Completely Wired With Volume Control". Wouldn't that imply "Completely Soldered"?


two capacitors
capacitor test
Some of the old capacitors are only rated at six volts! Time marches on - the new ones are rated at 50 volts,
but are the same size. On the right, a 30 MFD cap tests at 728 picofarads. That's .000728 MFD. It is deceased.


Lafayette HA-70C
Soldering the green wire onto the volume control and replacing the capacitors brought the second unit back to life.
Not only do the two HA70C's talk to each other, they are (unsurprisingly) compatible with the HA70d version.

I entertained the idea of replacing every resistor, capacitor and transistor in one of the HA-70C walkie-talkies. Considering how cheaply they were made I'd have the finest one on Earth, but what good would it do me? Who would I talk to?

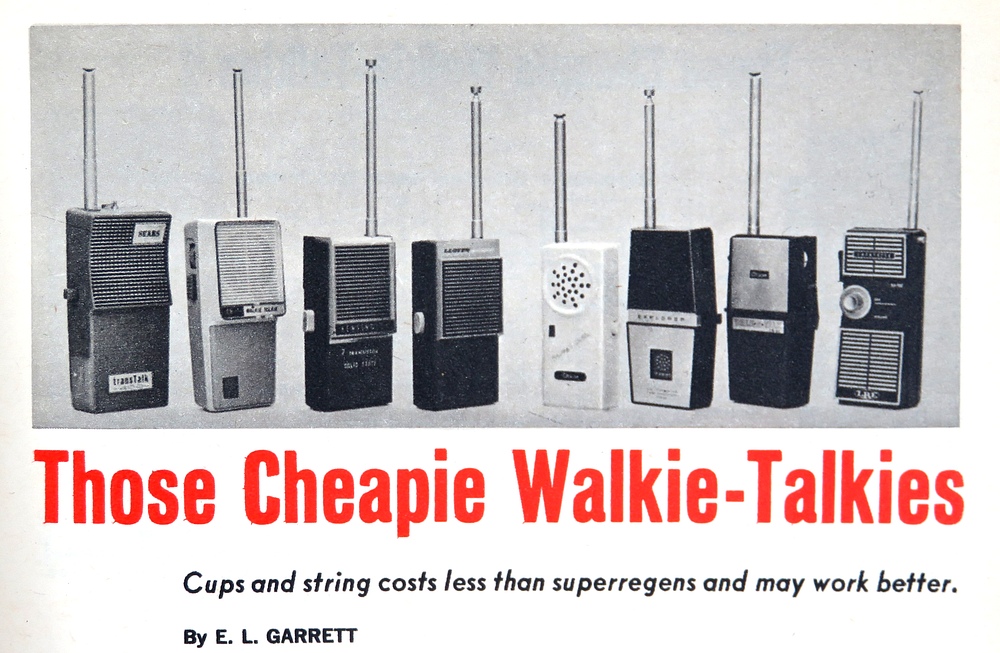

Cheapie Walkie Talkies EI Jan 1968
The Space Commander appeared in the January 1968 edition of Electronics Illustrated as a "Cheapie" walkie talkie. This is obviously some kind of mistake. Cups and string? They should be sued for slander!

In this entire lineup, the Space Commander is the ONLY walkie-talkie that can be used in outer space, specifically, in orbit around Earth's moon. Does it mention this fact? NO. Obviously Radio Shack paid a lot of money to the magazine to have them include the Space Commander in the article. Want proof it was Radio Shack? There are no Radio Shack walkie-talkies in the picture. There's your proof!



Cheapie Walkie Talkies EI Jan 1968
Here's something very funny. The text above is from the "Swap Shop" column of Electronics Illustrated, January 1968.  This guy wants to swap his six dollar Astro Commander for a Hallicrafters or National receiver. You can guess how that probably worked out. The receivers he was interested in hadn't been made in 18 years, so he may have hoped someone had one they no longer wanted.

This is the same issue that has the article on "Cheapie Walkie-Talkies." This adds irony to the humor, since he would have had no idea the walkie-talkie article would appear in the same issue as his request.

Guess what - He's still around. His name is James Dean. He's 70 years old (as of 2022) and still lives in New Orleans.
Check out the walkie-talkie article on Page 73 here.



BOX ART MYSTERY



Lafayette Mystery walkie talkie

I found this picture of the box on the web. I wasn't able to contact the website owner, and now I can't even find the site.
What the heck is the astronaut holding in in hand??

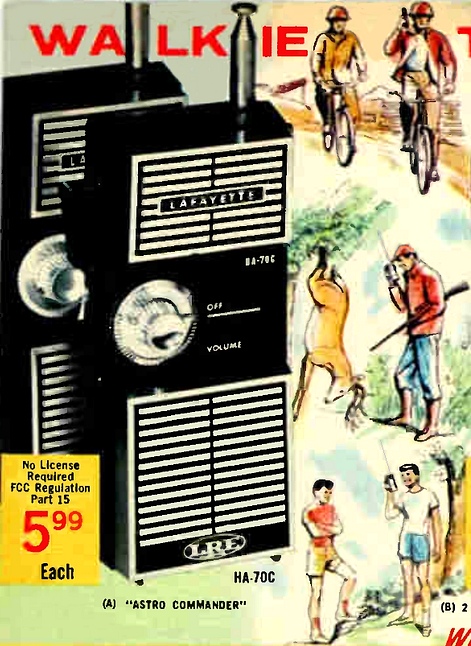

1970 Lafayette Catalog No.700
In the 1970 catalog, the walkie-talkie was called "Astro Commander" again. What is interesting is that the top drawing captured two members of the group "Devo" when they were youngsters. The middle drawing shows it being used to teach a deer to do headstands and other cool tricks. None of the people in the drawings are in outer space or engaged in activities pertaining to spaceflight, so they must be talking to someone who is.





Mike Simpson holding Space Commander picture
This is me. I can't get my picture on the Internet unless I put it there myself.
To download the box artwork, click here!

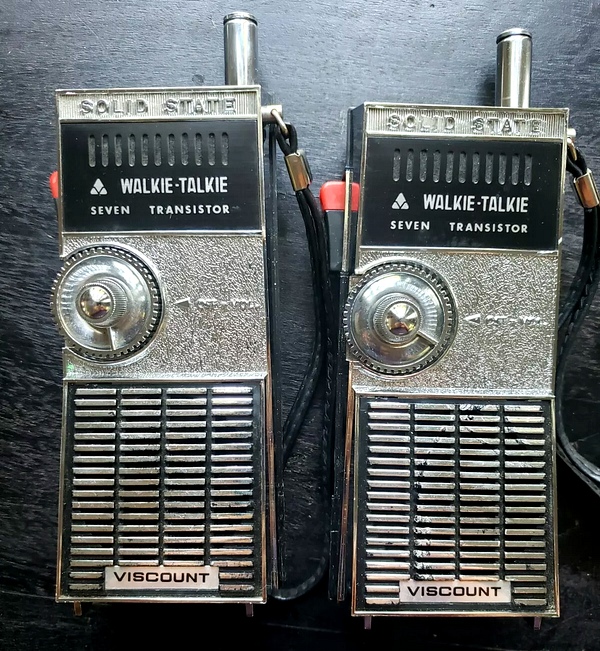

Viscount walkie-talkies
This company tried to copy the style of the classic Astro Commander, but failed miserably. They used the same knob as is found on the HA-70d, and created these abominations that look like they were dropped in silver paint. Their loathsome and repugnant appearance brings bile to my throat.






Now it's time for me to go into orbit around the moon in a Gemini space capsule and talk on my Astro Commander. If you don't hear back from me, that pesky heat shield failed on the way home.
